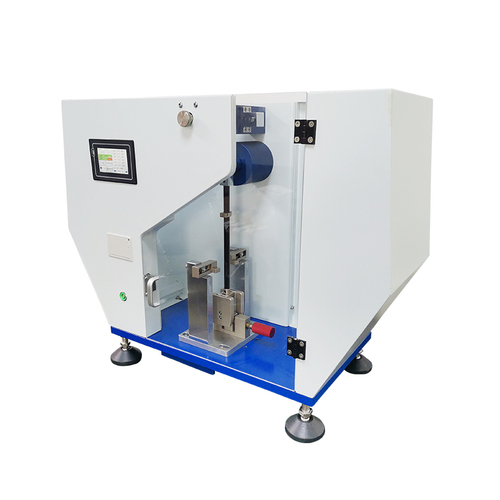

Charpy Pendulum Impact Test Method Test Machine for Strength Test

Product Description

Charpy Pendulum Impact Test Method Test Machine for Strength Test

Application:

This series of digital impact testing machine is mainly used for the

determination of impact toughness of non-metallic materials such as rigid plastics, reinforced nylon, FRP, ceramics, cast stone, electrical insulating materials, etc. It is the ideal testing equipment for the chemical industry, research institutes, universities, quality inspection, etc.

Features:

1. This series of impact testing machine is an intelligent digital display impact testing machine developed by micro-computer technology. It can automatically correct the energy loss caused by friction and wind resistance, and get rid of the numerical chart of energy correction due to the influence of resistance. (The detection of the residual energy of the pendulum and the correction of the energy loss after the sample breaks are completed once in the impact process).

2. This series of impact testing machines adopts electronic display test results to make the readings more intuitive and improve the accuracy and accuracy of the impact machine.

3.Using rotary encoder garden grating angle measurement technology, with advantage of high precision, good stability and large measurement range, digital displaying the thrust energy, impact strength, pre-elevation angle, elevation angle, average value, and energy loss automatic correction.

4.The swing arm is made of new carbon fiber material, the strength is higher than steel, and the weight is lighter than aluminum.

Standards:

The main technical parameters are in full compliance with the requirements of IS0 179-2000, GB/T 1043-2008, JB/T 8762-1998, GB/T 1451-2005, GB/T18743-2002

Specification:

Model: HT-1043-5D

Pendulum energy1J, 2J, 4J, 5J

Test angle: 150

Impact speed: 2.9m/s

Pendulum center distance: 221mm

Impact blade angle: 30

Jaw support spacing: 40mm, 60mm, 70mm, 95mm

Support blade corner radius: R=1mm

Advanced Single Pendulum Technology

This impact tester utilizes a single pendulum design with interchangeable weights, allowing for flexible capacity and optimal energy transfer. The 150-degree pendulum angle and lever-operated release mechanism ensure each test delivers accurate, repeatable results for material impact resistance.


Premium Safety and Construction

Safety is prioritized through an integrated safety shield and a heavy-duty structure with a stable powder-coated base. The tool steel anvil and striker guarantee long-term reliability and performance for repeated tests in demanding laboratory settings.


Certified Calibration and Direct Readout

Supplied with a standard certified specimen, the machine guarantees calibration accuracy. The direct mechanical analog dial ensures test results are read instantly and with fine resolution, minimizing operator error and streamlining the testing process.
